4. Build System

This chapter gives an overview of the Infrabase build system. The build commands are given in the user guide chapter.

The Infrabase build system relies on various scripts and methods, but is mainly driven by bitbake recipes.

We call standard scripts all shell scripts present in the scripts directory at the root of Infrabase, the most commonly used ones are build.sh, deploy.sh, mount.sh

The main concepts of bitbake are: layers, configurations, classes, recipes and tasks.

A layer can be defined as a collection of configurations, classes and recipes associated to a component. It describes the overall build process with the different tasks belonging to recipes.

Classes are configuration-independent functionalities/tasks and can have hierarchies (a base class can be inherited by other classes).

Recipes contain rules to be executed for a specific application or component.

Tasks are defined in classes or recipes and are the core functions managed by the build system. Tasks are either (bash) shell script or python functions

Configurations are everywhere, but the local.conf file located in conf/ directory contains the general configuration.

4.1. Bitbake environment

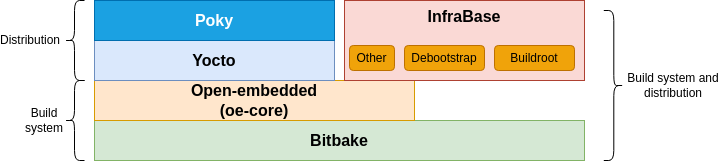

The Infrabase build system relies on Bitbake which is the task orchestrator system used by Yocto. The overall architecture is depicted in the figure below.

Fig. 4.1 Differences between Yocto and Infrabase in the build system architecture

While Yocto is closely related to other desktop-oriented distributions, using many of the same components as found on Desktops. Infrabase instead has opted to use buildroot which is more suitable for embedded use cases.

Infrabase makes use of the meta layer from OpenEmbedded because it provides several classes which enhance the developer experience of a Bitbake-based build system - so they should be considered as an integral part of the Infrabase.

4.2. Infrabase build system

In Infrabase, bitbake and some small parts of OpenEmbedded are used to build the initial environment and to reconcile patches of components after the modifications of the source code.

After the initial clone of the repository, bitbake allows to build all components by fetching the code from the original location and applying the related patchsets.

The updates of patches following some modifications of the repository are part of the development flow.

We differentiate a bitbake script from a standard script. To ease development, consider using the standard scripts from the scripts/ directory, they can be invoked from anywhere in the project.

4.3. Build system directory organization

All build system files (except the standard scripts) are located in the build/ directory.

Warning

Do not delete the build/ directory. It is not automatically generated and is stored in git. This is because the build/ directory contains layers. See directories that beging with the meta- prefix.

Actually, bitbake creates a tmp/ subdirectory within build/. If a complete re-build is required, you can delete tmp/ at any time.

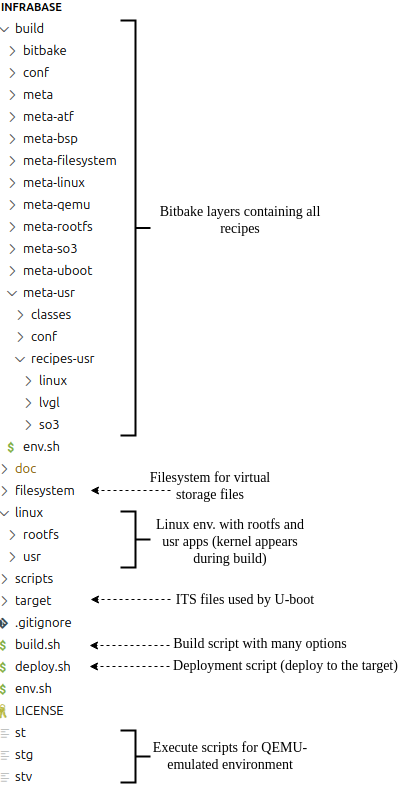

Fig. 4.2 Build system directory organization as stored in git

In bitbake, a layer corresponds to a meta directory entry. For example, the meta/ directory is a generic layer which is used by all other layers.

Let’s focus on the meta-linux layer as an example.

4.3.1. Directory conf/

General configuration directory

bitbake.conf - Main configuration for bitbake, each new layer must be added to this file to tell bitbake to consider the recipes described in the layer directory.

local.conf - Contains the influential project-wide configuration variables which by convention begin with the IB_ prefix, these configuration variables can be used by any recipe.

4.3.2. Directory meta-linux/classes

It defines the generic tasks/functions that are used by the recipe, like do_configure and do_build (two examples of tasks)

4.3.3. Directory meta-linux/conf

Each layer has a very similar file called layer.conf which tells bitbake further information about the dependencies between layers and their priorities in the build process. Currently, all layers are processed with the same priority (4).

4.3.4. Directory recipes-*

These are the recipes of the layer. In most cases, there is one recipe by layer (except for rootfs) which describes how to build the target component associated to the layer. Of course, depending on the number of releases/versions, there can be several recipes as well.

Each recipe may have several subdirectories. Typically, a directory with the name of the component (linux) which contains the recipe files and a files/ directory which contains additional files and patches.

4.3.5. Directory filesystem

This directory is special, it is used as a staging area for the preparation of the file system disk image. Before deployment or upon filesystem creation, symbolic links named p[0-9]+ are created. So for a disk image with 2 partitions filesystem/ will contain p1 and p2.

For more information read the deployment section of the user guide chapter.

4.3.5.1. The recipe

The configuration and requirements of a recipe is given in a file with the .bb extension (for example linux-5.10.bb in our case).

4.3.5.2. Patchset

A patchset is a collection pf patches which are processed during the build, with the do_patch tasks. In Infrabase, the list of patches to be applied is contained in a file with .inc extension within the files/ directory. And the list of .inc files to be considered in the recipe is described in the recipe file (linux-5.10.bb).

4.3.6. Directory tmp

Bitbake automatically creates a tmp/ directory in build/ for his management and project-related files. The figure above shows the contents of this directory.

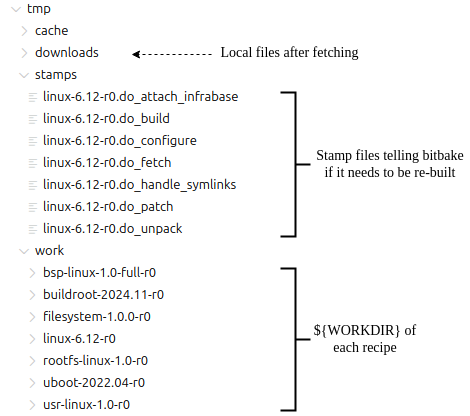

Fig. 4.3 Directory tree of the tmp/ directory in build/

Once a task is executed successfully, a stamp file (0 byte) is created so that bitbake will not re-execute

Note

Note that standard scripts remove the stamp files associated to the component to be re-built. Only the bsp recipe does not delete the stamps for individual components except the one corresponding to itself.

4.4. Infrabase Basic workflow

Before running build.sh, always start by sourcing the IB environment like so : . env.sh or source env.sh This will modify the PATH variable - making it possible to invoke standard scripts from anywhere in the project.

The initial build can be achieved by means of the build.sh -a <bsp_name> command. It will fetch, patch, prepare the environment and build everything (kernel, rootfs, apps, etc.).

To list the available BSPs one can use build.sh -l -a, this search for recipes in meta-bsp layer

In the build process, there is a particular task called do_attach_infrabase which perform a copy of source code to the root of infrabase. Hence, the development can be done independently of the tmp/ directory managed by bitbake.

Therefore, the development is done on the source code related to the branch while the original files are not modified (in tmp/work/) directories.

This allows developers to perform a diff (using the do_updiff task) which will generate the patches for the differences.

Warning

It has to be noted that the generated patches are issued from the difference between the local files and the original patched files. This leads to an incremental patching process. The diff process is always done against the directory which is stored in tmp/work/<component>/

4.4.1. Building a patchset

Following a development sprint, patchsets have to be (re-)generated in order to keep track of the code evolution. This is achieved by means of the do_updiff task. It has to be executed in the build directory. For example, if we do changes in linux, the patchset will be generated with the following command:

~/infrabase/build$ bitbake linux -c updiff

As result, the patchset is generated in build/meta-linux/recipes-linux/linux/files directory with the file 000x-linux-5.10-r0-patches.inc and its associated directory called 000x-linux-5.10-r0 in which the set of patches is located.

The prefix is made of four digits and is incremented at each patchset generation.

Based on these two elements, the patchset can be manually worked out.

To include a patchset in a recipe, the recipe file has to include the following lines:

FILESPATH:prepend: := "${THISDIR}/files/0001-${PF}:"

require files/0001-${PF}-patches.inc

Each recipe can have one or several patchsets according to the patch organization, and the first patchset should be called with prefix 0001-
